Please note: These are single wheels only. Specifications may not exactly match details listed.

19 DEEP | 29 WIDE EXT | 25 WIDE INT

The Purpose

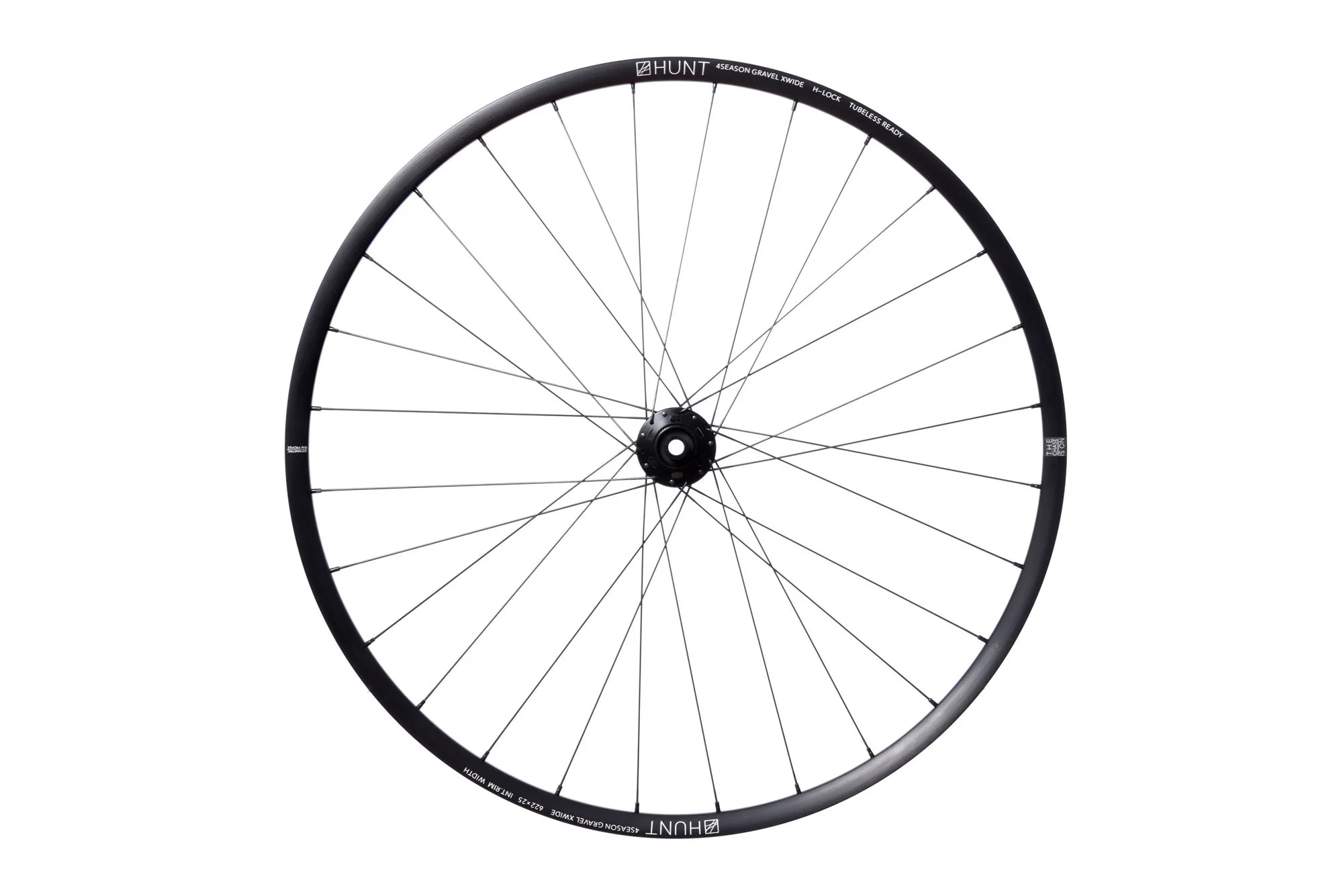

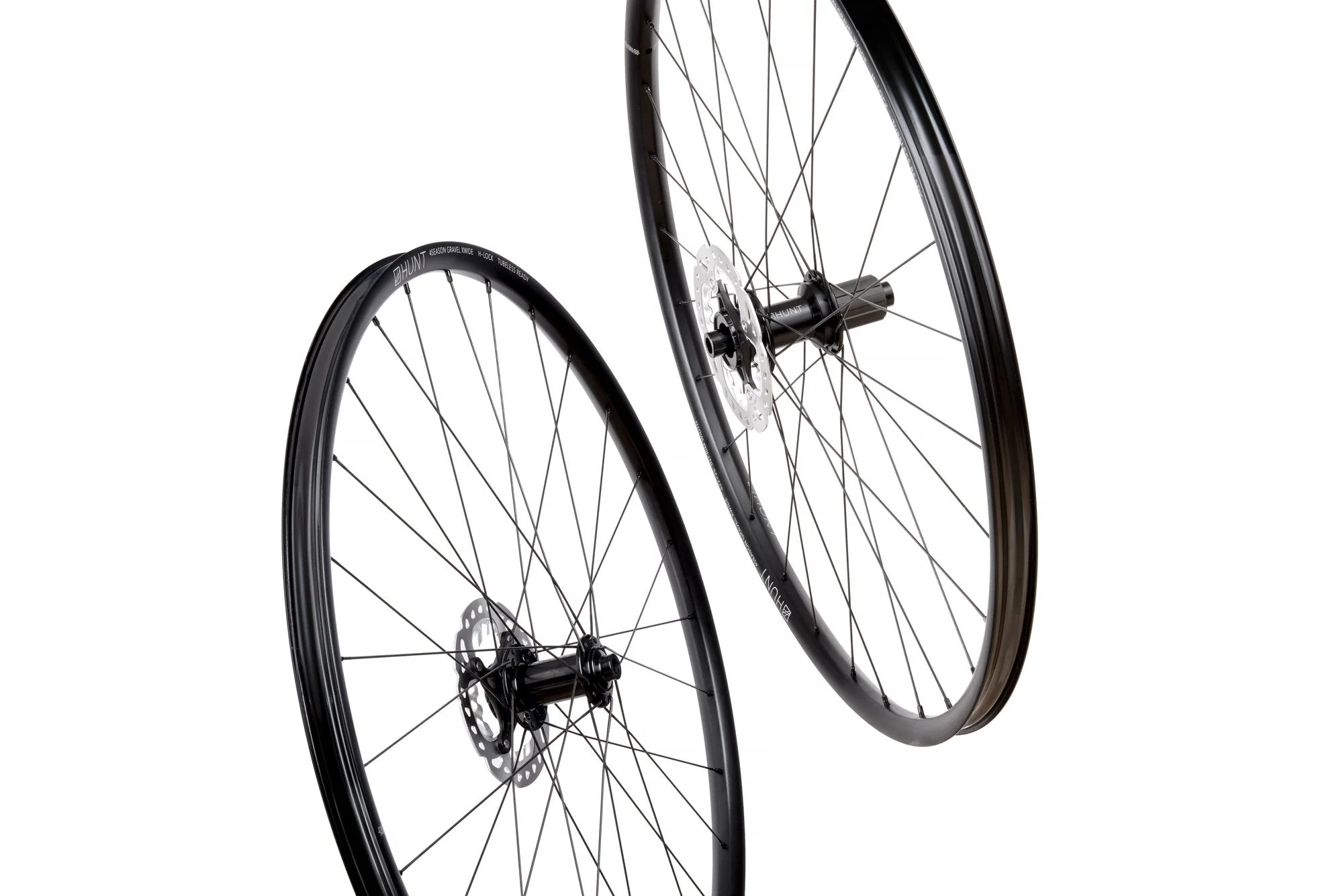

The 4 Season Gravel has long been a staple in our range. As a more burly version of the 4 Season Disc (owing to higher spoke count and wider rim) it was a great option for those wanting to hit the path less travelled. Fast-forward a couple of years, and the demands of gravel riding have taken on a whole new dimension, with riders seeking trails and routes you'd formerly only consider a mountain bike for. Enter the X-Wide, the wheel designed to shine where the boundaries are blurred...

We’ve invested in high-specification rims, hubs and spokes, so you don’t pay a weight penalty for that extra off-road capability. The 25mm (internal) rim is ideal for 40-50mm+ tyres, but will work well from 35mm+ (check compatibility with tyre manufacturer), so you can explore, go bike-packing, rip any trails or CX courses you fancy, and do it all with confidence.

If you're not sure which of our disc-brake 4 Season wheels are for you, then check our range explainer HERE.

Key Features

THE WHEEL READY TO TAKE ON ANYTHING

Rims | Super-wide (29mm external, 25mm internal) 6066-T6 (+34% tensile strength vs 6061-T6) Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x25.
Tyres | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tyres and tubes.
Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15.
Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
Weight | F 804g
See the full specs here

Please note: If you require a 6-bolt adapter you can purchase separately here.

The Experts' View

hunt_gallery

Full Specs

Rims

Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape included.
H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy
Asymmetric, to balance spoke tensions.
Disc-specific tubeless-ready profile.
29mm outer and 25mm inner width ideal for 35-50mm+ tyre widths.
19mm depth
Matt black anodized finish with laser etched graphics for low weight with excellent durability.

Spokes

J-bend cold-drawn
Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement)
28 spokes laced 2-cross front and rear.
Black stainless treatment.

Nipples

Brass for anti-corrosion resistance.
Square body for external adjustment and hex head for easy internal adjustment/tensioning.
12mm length.
14 gauge.
Black anodized finish.

Tyres Info

Maximum tyre pressure for this rim is 45psi when used with 35-45mm tyres. Maximum tyre pressures for other tyre sizes: 30mm do not exceed 70psi, 33mm do not exceed 50psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre
Please do not exceed the maximum pressure stated on your tyre.
Best suited for tyres from 35mm wide upwards.

Axle Size

These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.

Front Hub

We fit the axles you need, just complete the simple form shown after checkout:
All existing road/CX disc front axle standards are available including:

Quick Release (Quick release skewers included)
12mm Bolt Thru

All axle adapters are also available separately.
HUNT 4Season Disc designed for 4Season use with extra bearing shielding and sealing.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.

Rear Hub

7075-T6 heat-treated aluminium alloy freehub body.
All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
Hunt Race Season Disc straight-pull super-light alloy.
Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axles.
Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
Polished anodized black finish with laser graphics.
We fit the axles you need, just complete the simple form shown after checkout.]
All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.

Bearings

Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
Sealed cartridge replaceable units.
Dual full-contact seals.

Warranty, HUNT Rolling Road Tests & Weight Limits

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. 115kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres minimum 28mm at max 100psi as this will reduce the fatigue on the wheel. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.

60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not. Please note we cannot offer refunds on wheels that have suffered from crash damage but do offer a crash replacement discount.

Reviews

Bike Magazine and Website Experts' Views

Tested

"These wheels are also a step in the right direction for gravel bikes if you really want to optimise the wheel and tyre system for greater comfort and control off road."

5/5 Review

"A top-performing bargain upgrade for those who want a wider, smoother, tougher gravel wheel set"

4.5/5 Review

"Perfect rim width to work with gravel tyres, plus they are tough, stiff, great to ride on and a bargain"
